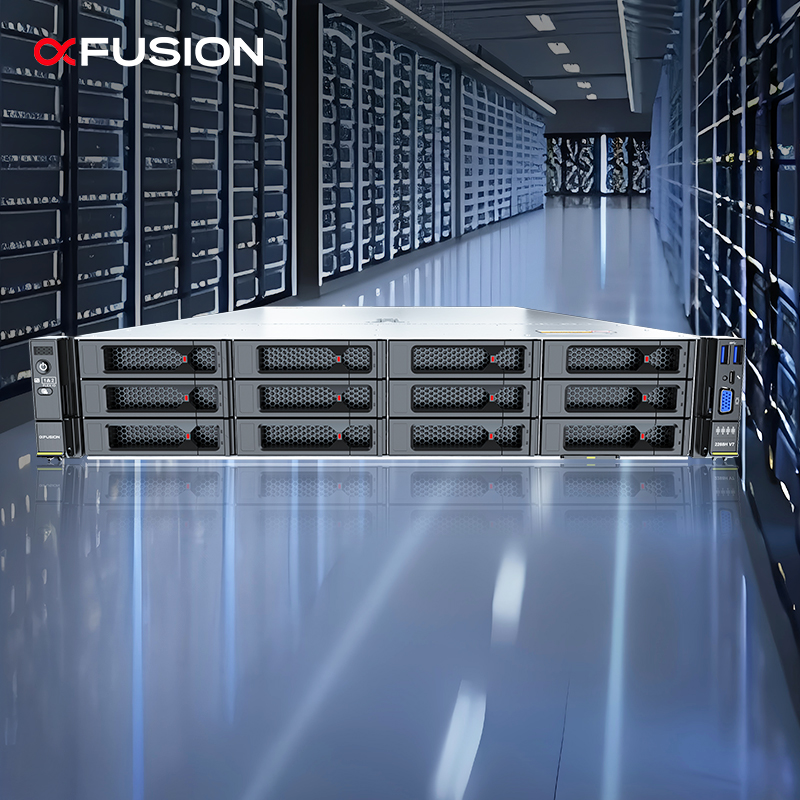

FusionServer 2288H V7 2U rack server: The FusionServer 2288H V7 is a new-generation 2U 2-socket rack server designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise business, and telecom. It is also ideal for IT core services, virtualization, high-performance computing, distributed storage, big data processing, and other complex workloads. The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

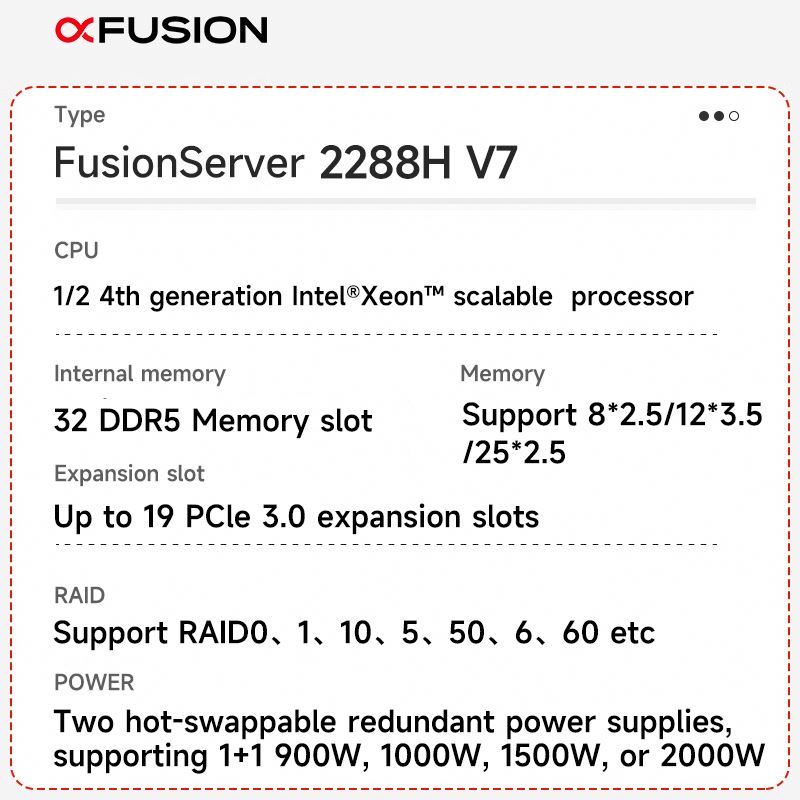

| Server Model | FusionServer 2288H V7 |
| Form Factor | 2U rack server |
| Processors | 1 or 2 x 4rd Gen Intel Xeon Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor |
| Local Storage |
Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5º SAS/SATA/SSD drives • 12 to 20 x 3.5º SAS/SATA drives • 4/8/16/24 x NVMe SSDs • 36 x E1.S SSDs* • Up to 45 x 2.5º drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs, hardware RAID, and hot swap |

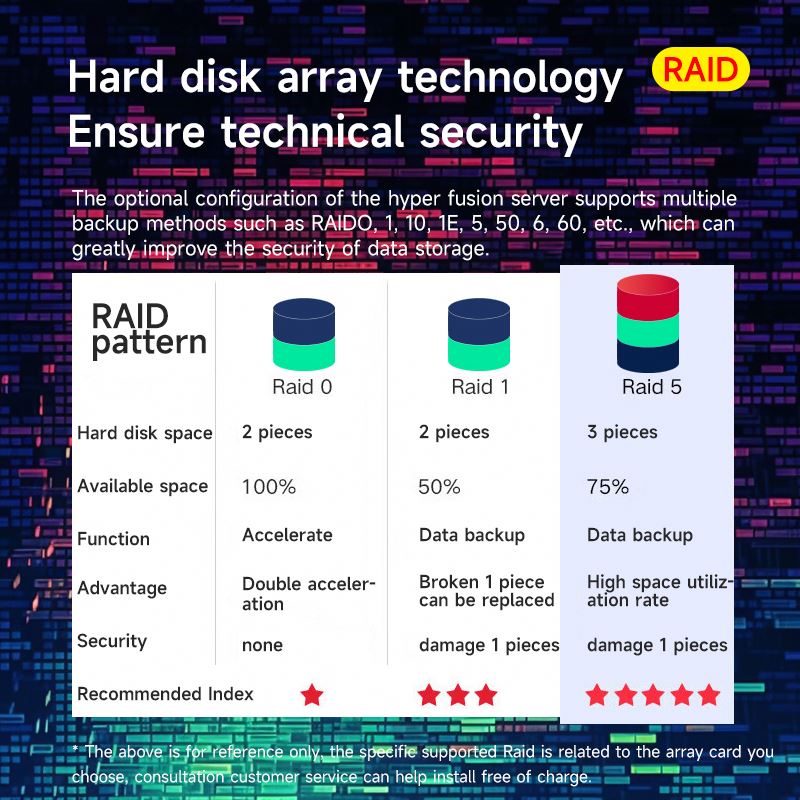

| RAID support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| PCIe Expansion | Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0 |
| Chip Set | Emmitsburg PCH |
| GPU accelerator card | 4 x dual-width or 14 x single-width GPU cards |
| Operating Systems | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler. |
| Fan Modules | 4 x hot-swappable counter-rotating fans in N+1 redundancy |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Security Features | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection |
| Operating Temperature | 5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4 |
| Dimensions (H x W x D) |
Chassis with 3.5º drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) Chassis with 2.5º drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |
| Power Supply Units |
2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs (1000 W input: 100 V to 127 V AC; 1500 W input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 3000 W AC Titanium PSUs (2500 W input: 200 V to 220 V AC; 2900 W input: 220 V to 230 V AC; 3000 W input: 230 to 240 V AC) • 2000 W AC Platinum PSU (1800 W input: 200 V to 220 V AC, or 192 V to 200 V DC; 2000 W input: 220 V to 240 V AC, or 200 V to 288 V DC) |
As a leading integrated IT solutions provider, our company combines cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide.
Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
