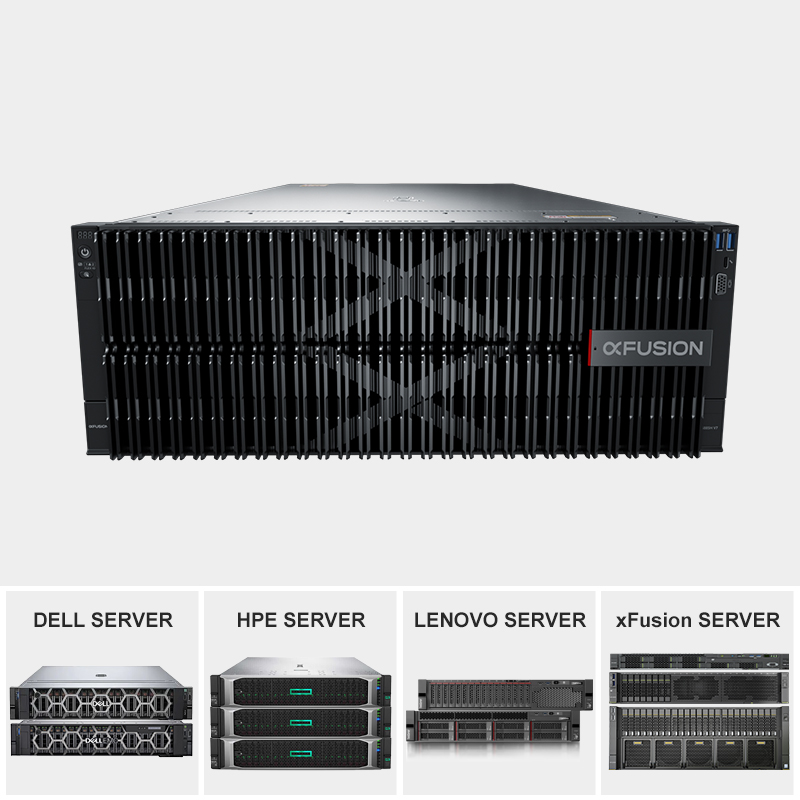

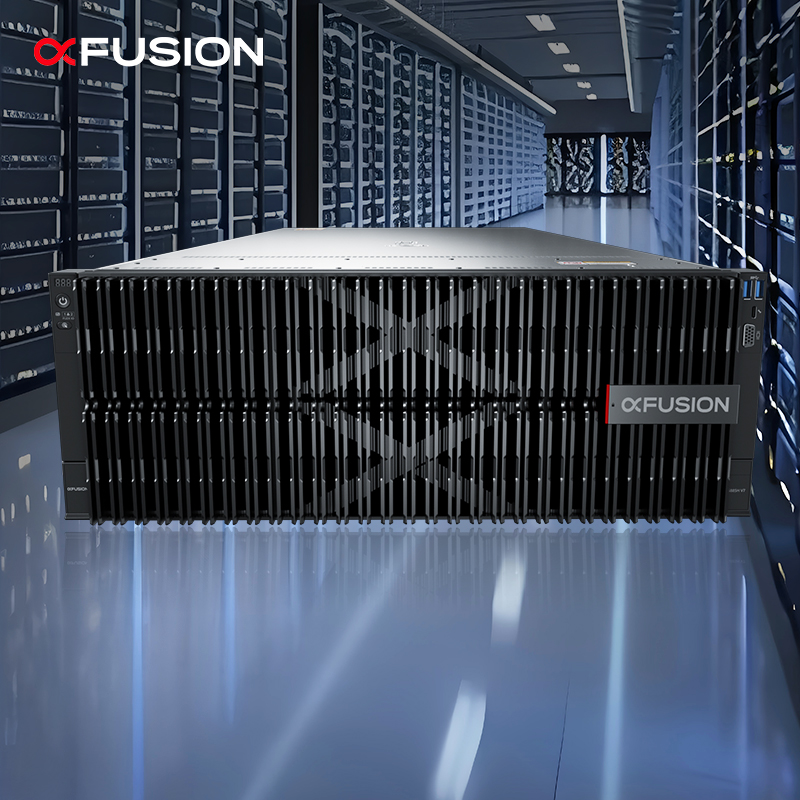

The FusionServer 5885H V7 server is a widely used 4U 4-socket rack server designed for Internet data centers (IDC), cloud computing, enterprise markets, and telecom business applications. It is highly suitable for demanding virtualization applications, database deployments, memory computing, and general cloud workloads.

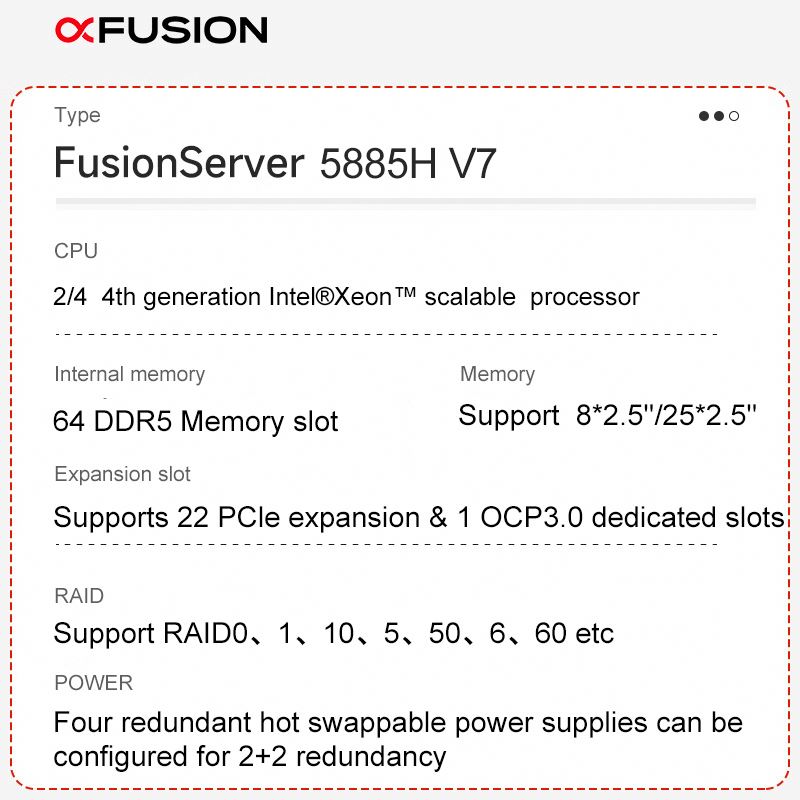

| Server Model | FusionServer 5885H V7 |
|---|---|
| Form Factor | 4U rack server |
| Processors | 2 or 4 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor |
| Local Storage |

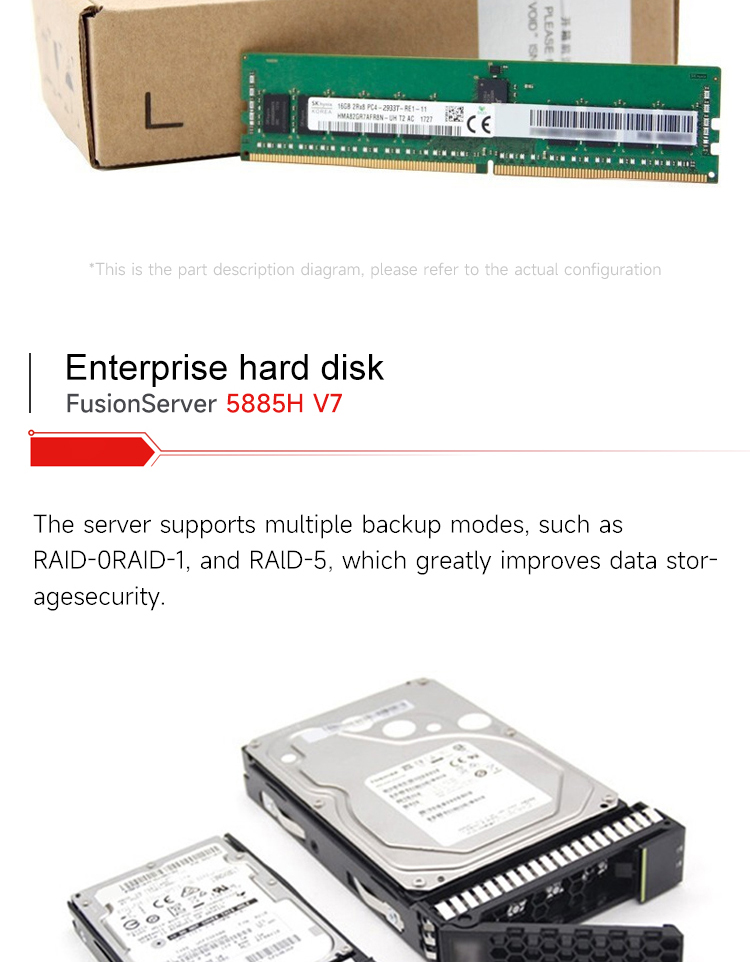

Hot-swappable drive configurations: • 8, 24, 25, or 50 x front 2.5″ SAS/SATA drives • 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs • 24 x front NVMe SSDs • 25 x front 2.5″ SAS/SATA drives and 24 x front NVMe SSDs • 36 x front E1.S SSDs • Up to 52 x 2.5″ drives Flash storage: • 2 x M.2 SSDs, supporting hardware RAID |

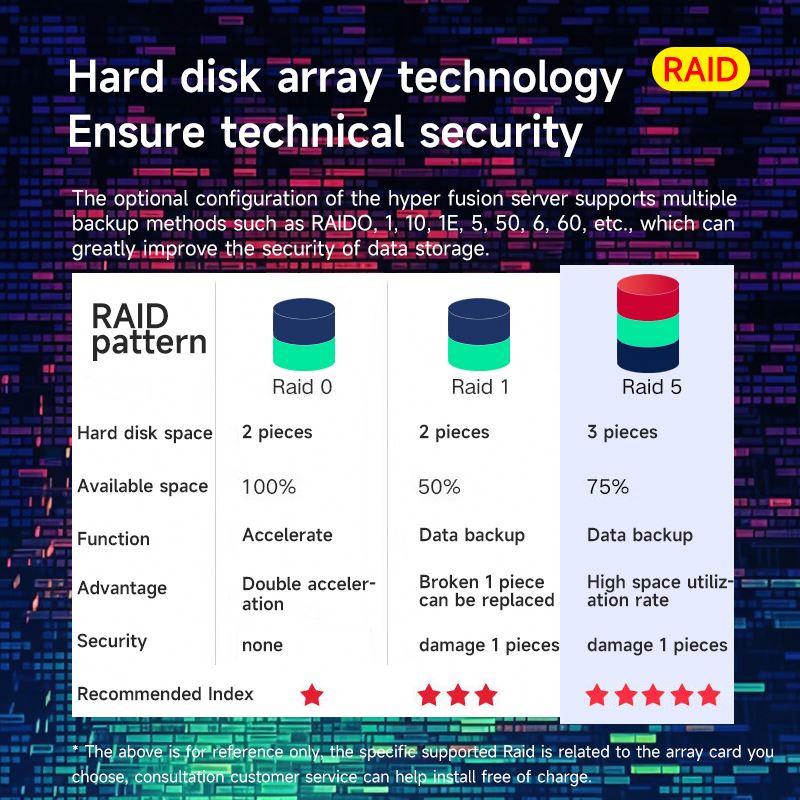

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| PCIe Expansion | Up to 22 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 21 x standard PCIe slots |
| GPU Accelerator | 4 x dual-width GPU cards or 14 x single-width GPU cards |
| Operating Systems | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler. |
| Fan Modules | 8 x hot-swappable counter-rotating fan modules in N+1 redundancy |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Security Features | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection |
| Operating Temp | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4 |

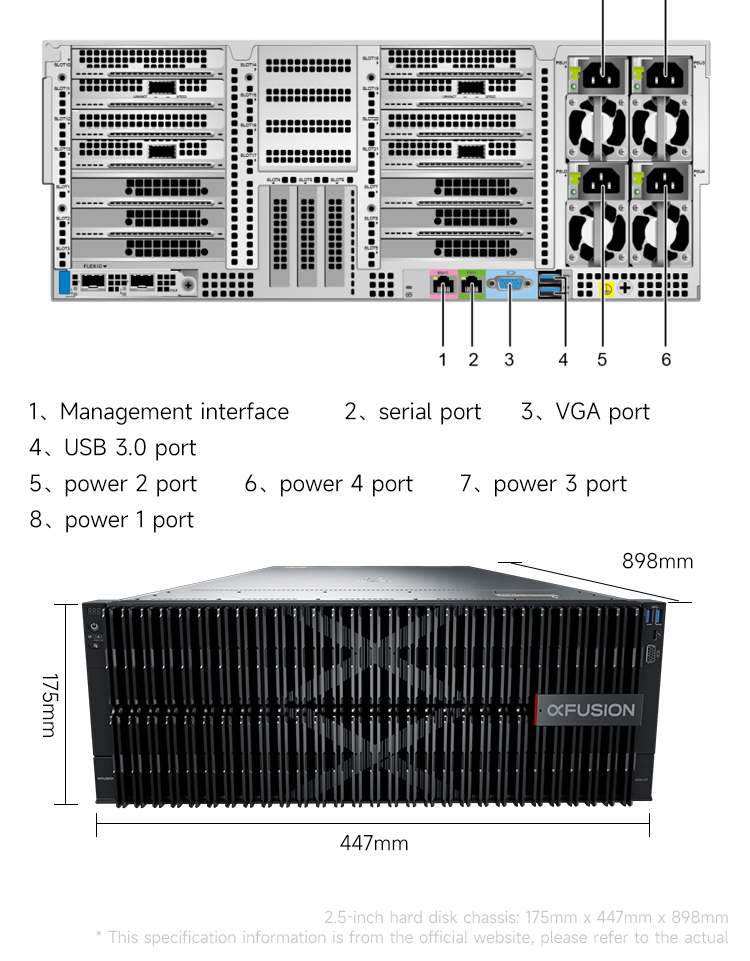

| Dimensions | Chassis with 2.5″ drives: 175 mm x 447 mm x 898 mm (6.89 in. x 17.60 in. x 35.35 in.) |
| Power Supply Units |
4 x hot-swappable PSUs in 2+2 redundancy mode: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs (1000 W @ 100 V to 127 V AC, 1500 W @ 200 V to 240 V AC, or 192 V to 288 V DC) • 2000 W AC Titanium PSUs (1800 W @ 200 V to 220 V AC, 2000 W @ 200 V to 230 V AC / 230 V to 240 V AC) • 3000 W AC Titanium PSUs (2500 W @ 200 V to 220 V AC, 2900 W @ 220 V to 230 V AC, 3000 W @ 230 V to 240 V AC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) |
